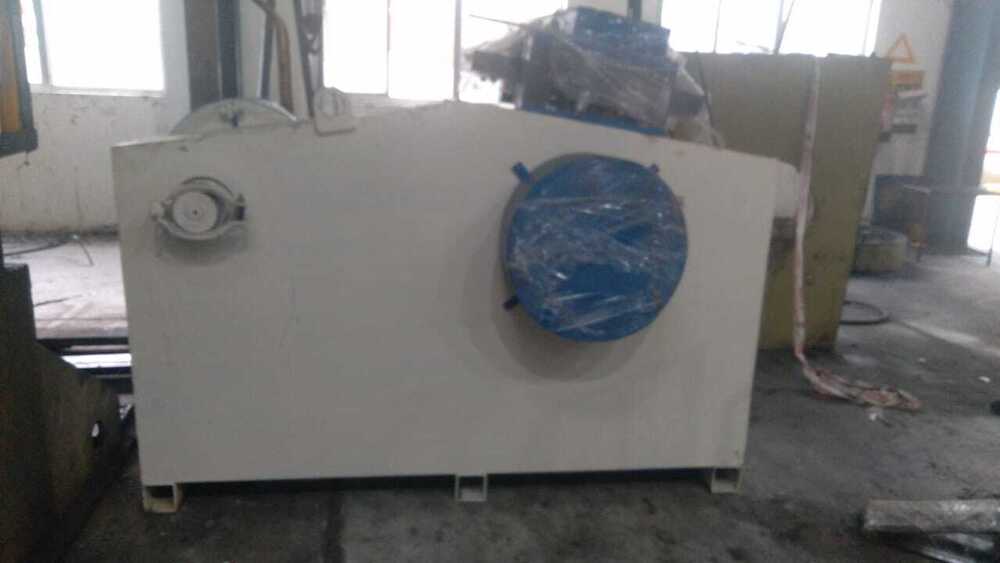

2 in 1 Decoiler and Straightener

Get a Price/Quote

MOQ : 1 Piece

2 in 1 Decoiler and Straightener Specification

Type
2 in 1 Decoiler and Straightener

Material
Robust Alloy Steel Structure

Capacity
Up to 1500 kg

Computerized
No, Yes

Automatic Grade
Semi-Automatic, Automatic

Voltage
220V / 380V (customizable)

Frequency (MHz)
50/60 Hz

Cutting Thickness
0.3 - 3.2 mm

Size
Medium / Customized

Width
Up to 300 mm

Weight
Approx. 750 kg

Dimension (L*W*H)
1600 mm x 900 mm x 1200 mm

Control System
PLC Control Panel with User-friendly Interface

Max Coil Outer Diameter
1200 mm

Drive Type
Gear Drive / Motorized

Installation
Onsite installation service available

Safety Feature
Emergency Stop Button, Safety Enclosure

Application
Sheet metal coil feeding in stamping, forming, and pressing lines

Power Source
Electric, 3-Phase

Straightening Rollers
7 Rollers (4 upper, 3 lower), hardened & ground

Coil Inner Diameter
450-530 mm

Decoiling Speed
15 m/min - 24 m/min

Surface Finish
Rust-proof Painted / Powder-coated

Noise Level
< 80 dB

2 in 1 Decoiler and Straightener Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About 2 in 1 Decoiler and Straightener

Experience a rarefied blend of value and performance with our 2 in 1 Decoiler and Straightener, now at a Sizzling Price Cut! Meticulously engineered with robust alloy steel, this noteworthy unit delivers a lavish maximum coil capacity of 1500 kg and supports outer diameters up to 1200 mm. Equipped with 7 hardened and ground straightening rollers, motorized gear drive, and PLC control panel, it ensures seamless decoiling at 15-24 m/min. Enjoy user-friendly operation, rust-proof finish, and truly the Best Price for a solution trusted by manufacturers across India.

Versatile Applications & Utility

The 2 in 1 Decoiler and Straightener is primarily used in sheet metal coil feeding for stamping, press, and forming lines. Widely employed by automotive, industrial, and manufacturing sectors, it serves as an essential tool for feeding and straightening metal strips prior to fabrication. It is used for processing a range of materials with varied coil dimensions and thicknesses, guaranteeing precise output for complex forming and pressing operations. Its robust design ensures reliable operation in demanding environments.

Premium Payment & Supply Terms

Obtain your quotation today for this premium machine, with flexible payment terms tailored to suit enterprise needs. Our supply ability ensures timely fulfillment of both standard and customized orders across India. Shipped goods are meticulously packed with secure, industrial-grade material to prevent damage during transit. Each unit is shipped with all essential documentation and manuals for smooth commissioning. For further details on packaging or shipping, reach out to our dedicated customer support team.

FAQ's of 2 in 1 Decoiler and Straightener:

Q: How does the 2 in 1 Decoiler and Straightener enhance sheet metal production?

A: The machine streamlines the coil feeding process, reducing manual handling and increasing accuracy in straightening, which leads to improved efficiency and consistent product quality in stamping or pressing lines.

Q: What are the primary applications of this equipment?

A: This model is widely used in industries like automotive, manufacturing, and fabrication for feeding and straightening steel coils before they are stamped, pressed, or formed into desired shapes.

Q: What is the installation process for the 2 in 1 Decoiler and Straightener?

A: Onsite installation service is available, ensuring the equipment is properly set up and integrated within the existing line. Our technicians also provide operational guidance and basic training.

Q: Where can the 2 in 1 Decoiler and Straightener be shipped?

A: We supply and ship this machine across India, providing timely and secure delivery to manufacturing facilities, workshops, and production lines per customer requirements.

Q: What are the safety features included in this machine?

A: Safety is prioritized with essential features such as an emergency stop button and safety enclosure, safeguarding operators against accidental injuries and ensuring compliance with industry standards.

Q: How is maintenance managed for this equipment?

A: Routine maintenance is simple due to the robust alloy steel structure and high-quality build. The straightening rollers and drive systems are designed for longevity and can be serviced as needed with manufacturer support.
